Bolin- Range Indoor/Outdoor PTZ Camera 4K-25X-BK

Ask our expert!

Do you have a question or do you need help making a choice? Contact our advisor:

1719571795548

Thomas Gort

+31 85 210 2124

sales@trigitec.com

Ask a question
Thank you for your question. We will contact you as soon as possible!
SKU: RANGE
Log in to order products or register for an account .

✅ Orders before 3pm ship the same day

✅ 1-3 day delivery across Europe

✅ Full technical and warranty support

Description

Range is designed as the first PTZR camera built to function as an anywhere camera, allowing production teams to use the same camera across both indoor and outdoor environments. While most outdoor cameras sacrifice the size and usability expected from indoor production systems, Range maintains the form factor and visual presence of a professional indoor PTZ while adding the durability required for outdoor operation.

With 4K60 video and 25X zoom powered by a 1/1.8-inch Sony sensor, Range is suited for applications ranging from studios and performing arts venues to sports production and live events. Its IP65 rating, concealed rain wiper, and operating range from -40°C to +60°C allow the camera to operate reliably in changing weather conditions.

Range also introduces an industry-leading motion system, with high-precision brushless motors capable of PTZR movement up to 300° per second and acceleration from 0° – 120° per second in 200 milliseconds. The image module can rotate up to 270°, enabling vertical video, creative camera angles, and horizon correction.

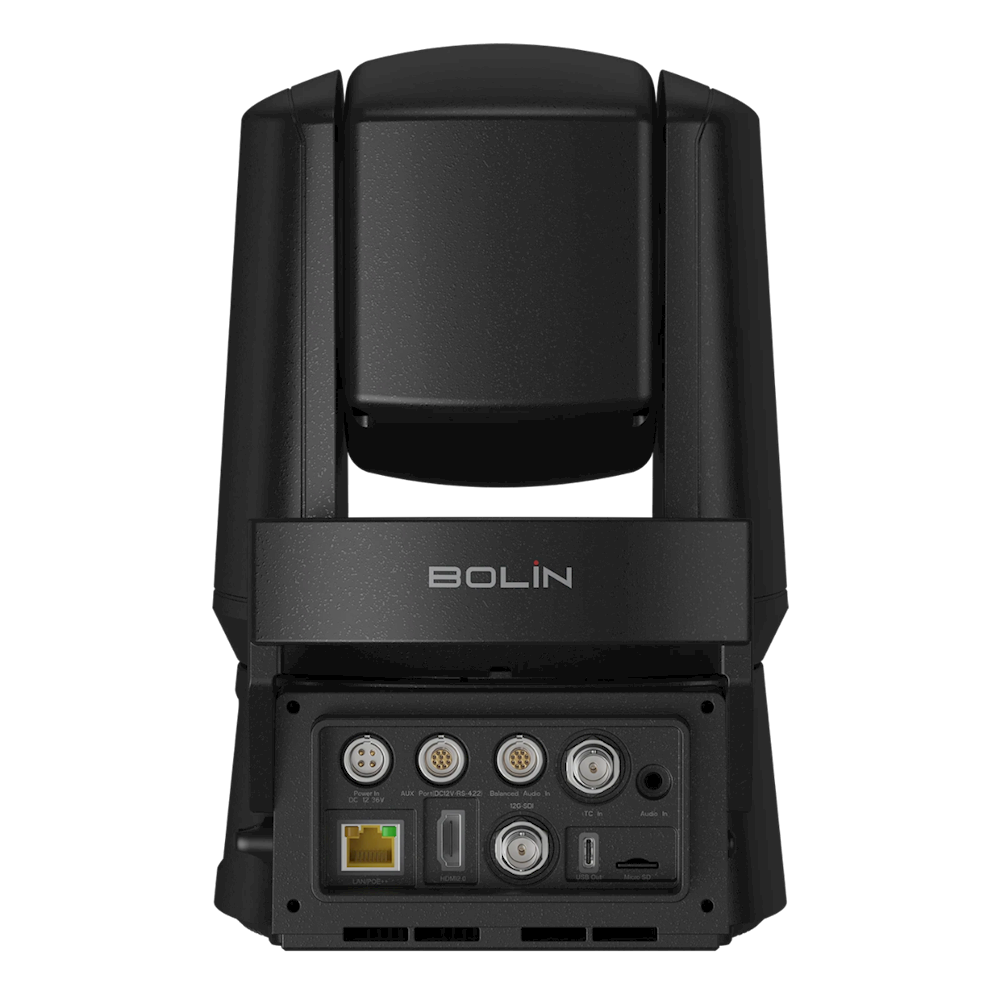

Additional features include an integrated screen for reviewing settings and live preview, a built-in carrying handle with threaded accessory mounting points, and support for both Ethernet and Wi-Fi connectivity. Connectivity includes 12G-SDI, HDMI 2.0, USB-C (UVC), and IP outputs, along with support for NDI, SRT, RTMP, RTSP, and ONVIF workflows.

Range Key Features

  • 4K60, 25x Zoom, 1/1.8" Sensor
  • IP65-rating with a concealed rain wiper and an operating temperature range from -40°C to +60°C.
  • Precise, brushless motors deliver quiet, smooth movement up to 300°/s.
  • 270° image module rotation allows for roll adjustments and vertical video.
  • Gimbal-based stabilization eliminates vibrations for steady shots.
  • AI-assisted autofocus and tracking keep framing consistent.*

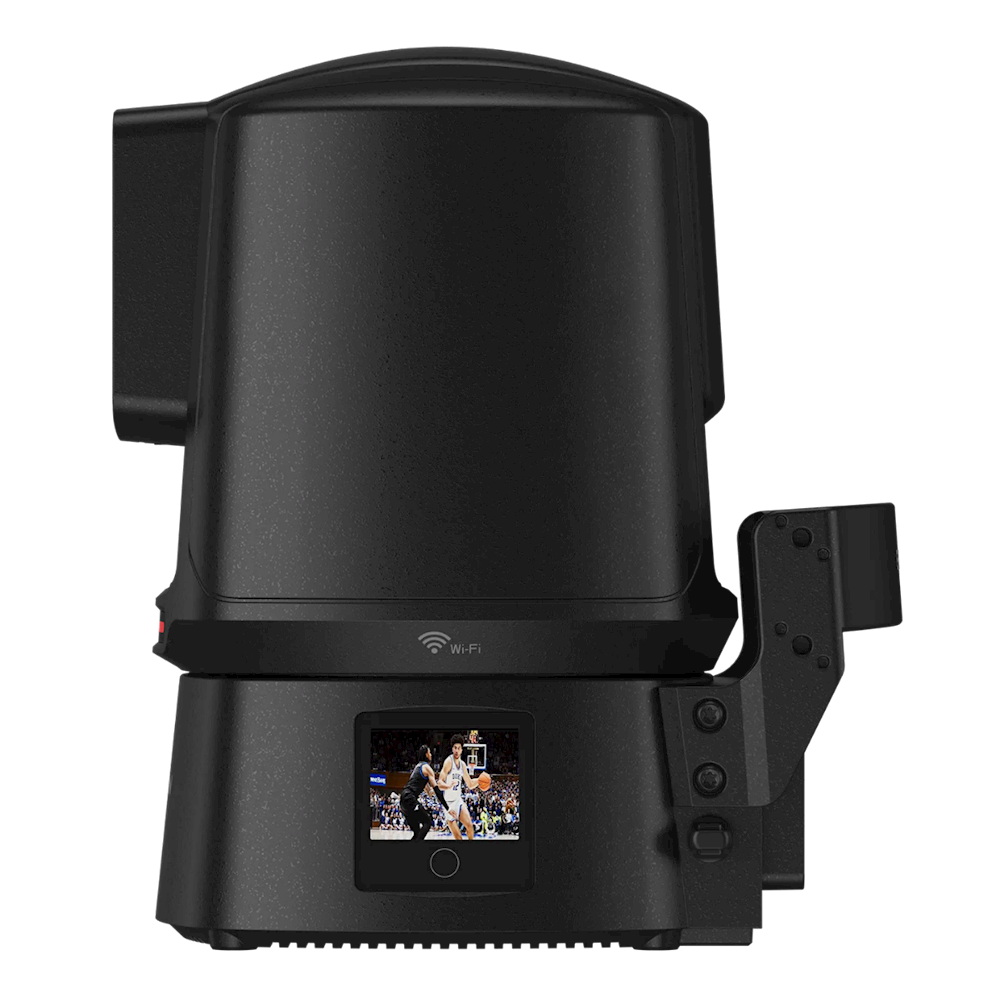

  • Built-in screen provides live view and quick access to image parameters.
  • Illuminated ports for easy cable connections in low-light.

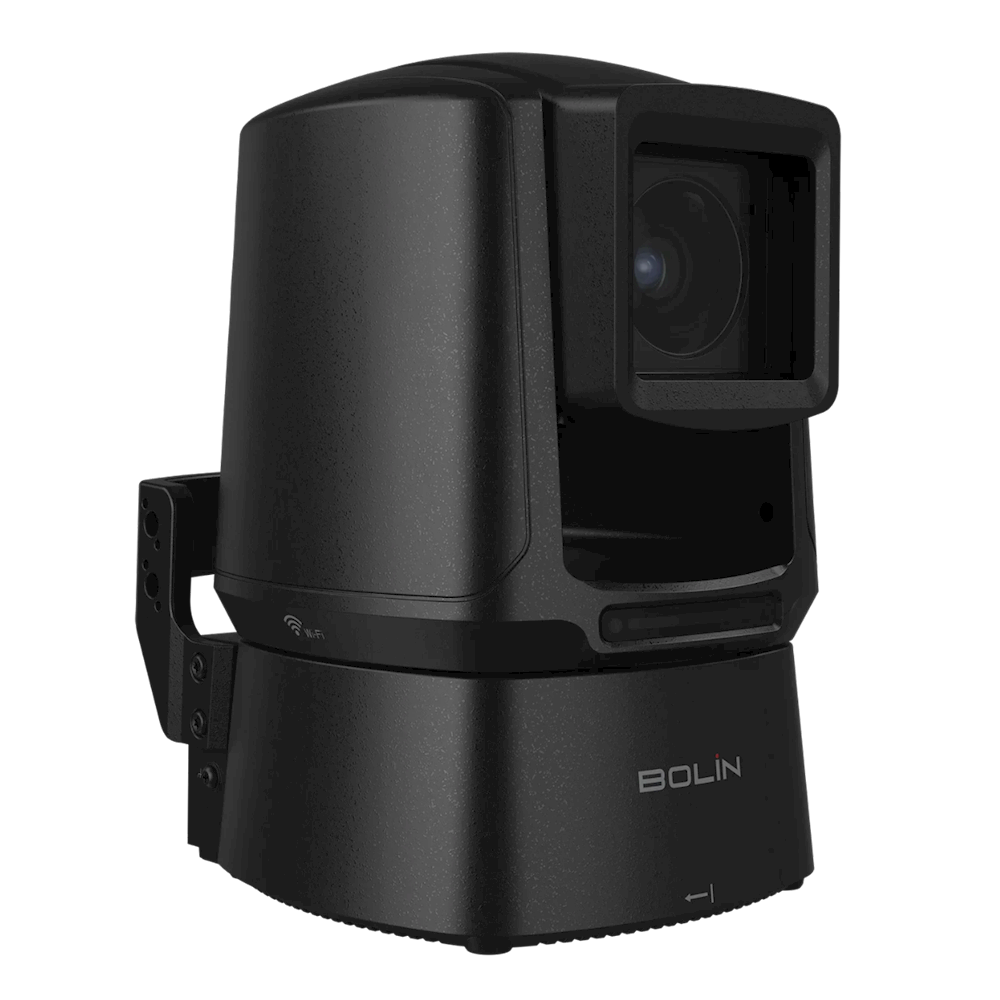

  • Integrated handle with threaded points for rigging and transport.

*Available in a future update.

Specifications

Brand Bolin
Itemcode RANGE
Article Type Cameras and Controllers

Audio

Audio Input XLR balanced
Audio Output HDMI, SDI, USB-C (UVC), IP, MicroSD Card Recording

Environmental

IP Rating IP65
Wiper Yes

Imaging

Effective Pixels 8.4 MP
Image Sensor 1/1.8" CMOS (STARVIS)
Image Stabilization 3-axis mechanical gimbal
Max Video Resolution 3840x2160
Min Illumination 0.5 lux(F1.61, AGC ON)
Wide Dynamic Range Yes

IP Streaming

Audio Codec AAC-LC
NDI NDI HX3
Simultaneous Streams 2
Streaming Protocols RTMP, RTSP, RTP Streaming (Unicast, Multicast), MPEG-TS over UDP, MPEG-TS over RTP
Timecode Yes
Video Codec H.264, H.265
WiFi Yes (WiFi-6)

Lens

Aperture F/1.6-7.6
Digital Zoom 16x
Focal Length 7.1-171.95 mm
Horizontal Field of View 59.2° to 2.5°
Optical Zoom 25x

Physical

Built-in Display Yes (2" AMOLED)
Dimensions 168 × 226 × 256 mm
Mounting Ceiling mount, Wall mount, Tripod
Weight 5.15 kg

Power

Power Consumption 78 W
Power Input 12V DC~36V, PoE++
Power Output Yes (12V, 2A)

Product Identification

Product Family Indoor/Outdoor PTZ Camera

PTZ Control

Control Interfaces RS-422, IP, IR Remote
Control Protocols VISCA Over IP, ONVIF, NDI, VISCA, PELCO P/D
Tally Light Yes

PTZ Movement

Max Pan/Tilt Speed 300°/s
Pan Range 340° (-170° to +170°)
Preset Positions 255
Roll Range 270° (-90° to +180°)
Tilt Range 210° (-30° to +180°)
Tour/Cruise Yes (12)

Video Output

HDMI HDMI 2.0
Local Recording Yes (MicroSD)
SDI 12G-SDI
USB USB 3.0
