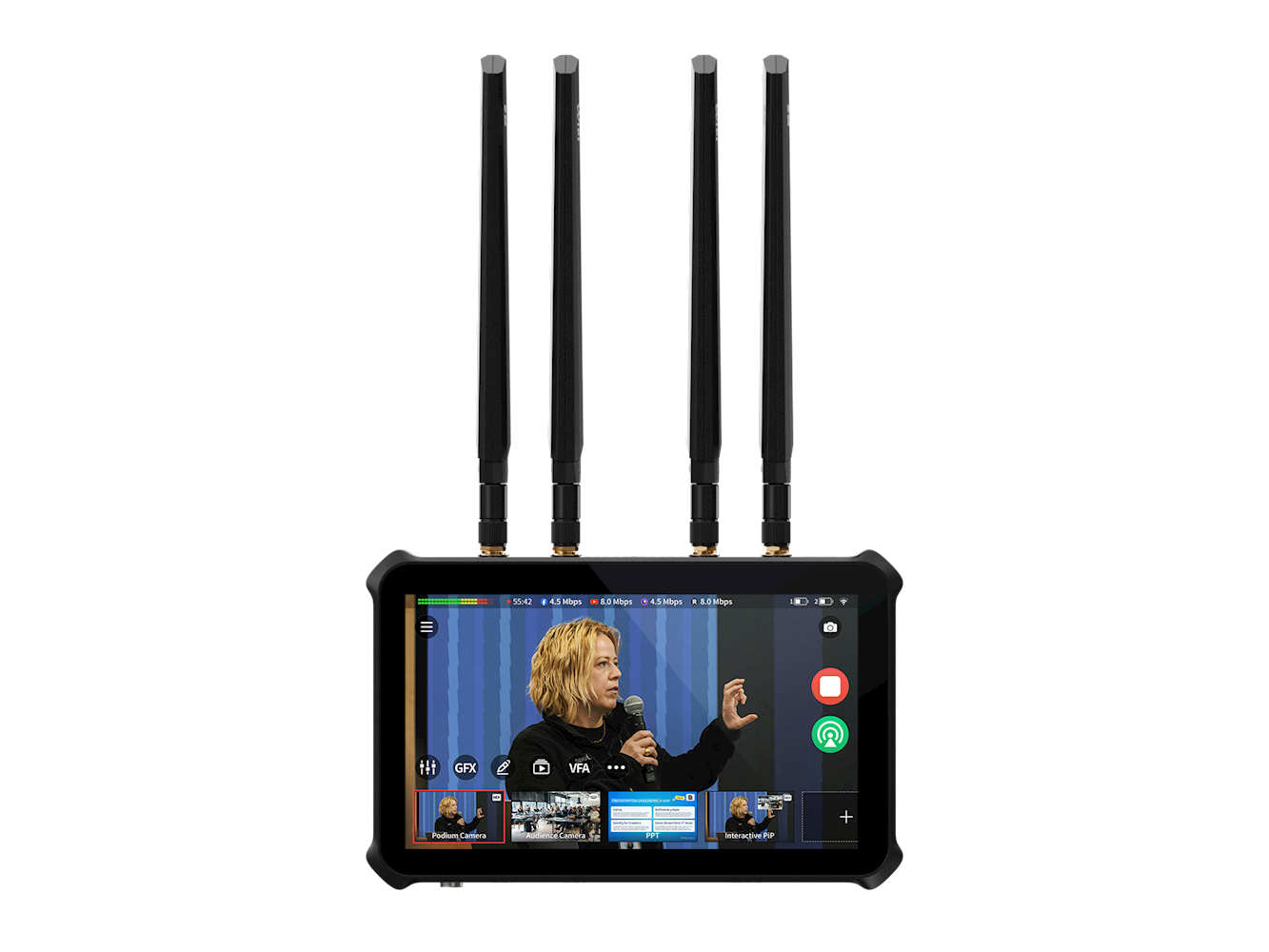

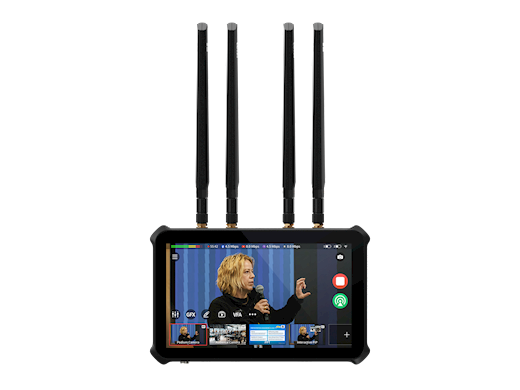

Magewell Director Plus

Director Plus is a portable, broadcast-grade all-in-one 4K production and presentation system designed for end-to-end live video workflows. Users can flexibly ingest live video feeds and media assets from a wide range of devices, networks, and even third-party software platforms. By switching, compositing, and editing multiple signal sources, creators can produce unique video content to capture and share important moments or enhance meetings and presentations.

The device features enhanced network connectivity and aggregation capabilities, enabling it to reliably receive and transmit a greater number of network streams while ensuring high-quality live streaming performance even in challenging outdoor or low-bandwidth environments. Users can choose the control method that best fits their workflow - from the built-in touchscreen and mobile app to plugins and API support for third-party systems. Without requiring a computer, Director Plus delivers a complete onestop professional AV production experience, purpose-built for live events, sports productions, vlogging, corporate meetings, presentations, and more.

Key Features

• Supports flexible input sources including 4 HDMI inputs, 2 Webcam inputs, 10 network streams (including
• NDI/SRT/RTMP/RTSP/Phone Camera), and media files
• Broadcast-grade 4Kp60 content production capabilities for signal input, encoding and transmission
• H.264/H.265 encoding with bitrates up to 120 Mbps
• Supports 4-channel simultaneous ISO recording with independent capture of multiple sources for simplified postproduction
• Simultaneous streaming to up to 4 platforms, compatible with NDI HX3, SRT, RTMP, RTSP and other mainstream
• protocols
• Built-in 5G module with support for multi-link network bonding

Packing List

• 1* Director Plus
• 2* 5G Antennas
• 2* Wi-Fi Antennas
• 1* Screw Locking Power Adapter (12V/5A)
• 1* Sunhood Kit (with 2 thumb screws)
• 1* USB-C to USB-A Cable
• 1* USB-A to USB-C Adapter
• 1* SIM Card Ejector
• 1* Assembly Stand Kit (supports both portrait and landscape mounting, with 4 thumb screws)
• 1* Screen Cover

Technical Specifications

Revised on 05/25/2026

Video Input

HDMI

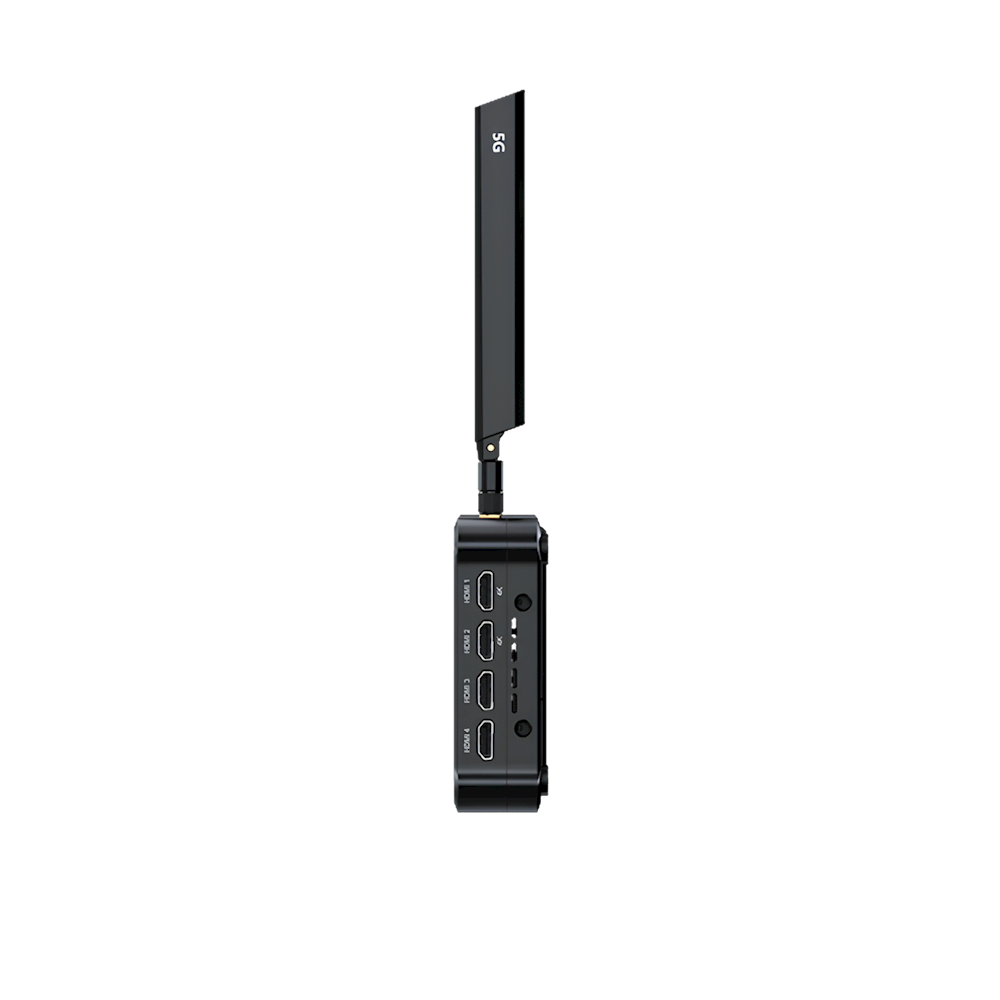

• Port: 4x HDMI 2.0 Type-A port
• Typical resolution/frame rate:
• 4096x2160p/3840x2160p 23.98/24/25/29.97/30/50/59.94/60 (Only available for HDMI 1 and HDMI 2)
• 1920x1080p 23.98/24/25/29.97/30/50/59.94/60/120
• 1920x1080i 25/29.97/30
• 1280x720p 23.98/24/25/29.97/30/50/59.94/60
• 720x576p 50/100
• 720x576i 25/50
• 720x480p 59.94/60
• 720x480i 29.97/30
• Color depth: 8/10/12-bit
• Color sampling: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2
• Color format: Auto/RGB/YUV BT.601/YUV BT.709/YUV BT.2020
• EDID: Supports custom EDID

USB

• Port: 1x USB 3.0 Type-A port, 2x USB 3.0 Type-C port
• Format: YUYV, MJPG, NV12, UYUV, RGB24, H.264, H.265
• Resolution/frame rate: Up to 4K 60fps

Phone Camera

• Connection mode: LAN, Wi-Fi
• Codec: H.264, H.265
• Resolution/frame rate: Up to 4K 60fps

SRT Caller/Listener

• Codec: H.264, H.265
• Resolution/frame rate: Up to 4K 60fps or 2K 120fps

RTMP Pull/Push

• Codec: H.264
• Resolution/frame rate: Up to 4K 60fps or 2K 120fps

RTSP stream

• Codec: H.264, H.265
• Resolution/frame rate: Up to 4K 60fps or 2K 120fps

NDI® stream

• NDI HX2, NDI HX3, NDI High Bandwidth
• Codec: H.264, H.265, SpeedHQ
• Resolution/frame rate: Up to 4K 60fps or 2K 120fps

Video

• Resolution: Up to 4K
• Codec: H.264, H.265
• Format: MOV/MP4/WebM/MKV


• Format: JPEG/PNG/BMP

Webpage

• Supports adding up to 3 webpages as scenes and 7 webpages as GFXs

Document

• Supports adding up to 3 documents

App

• Supports adding up to 3 apps
