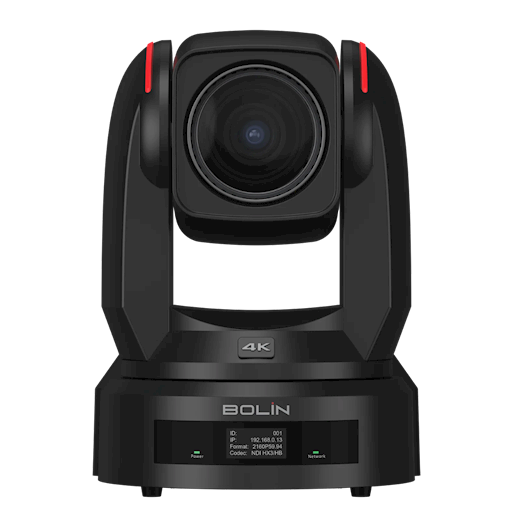

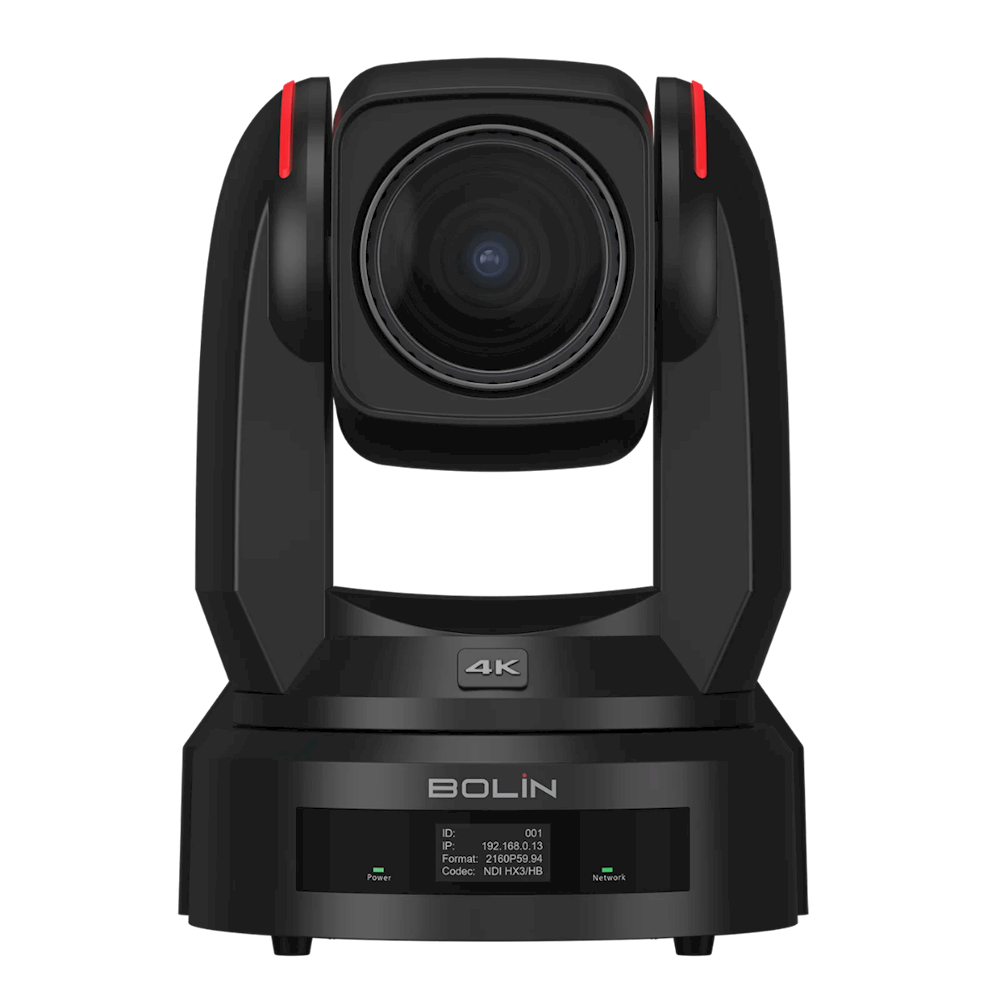

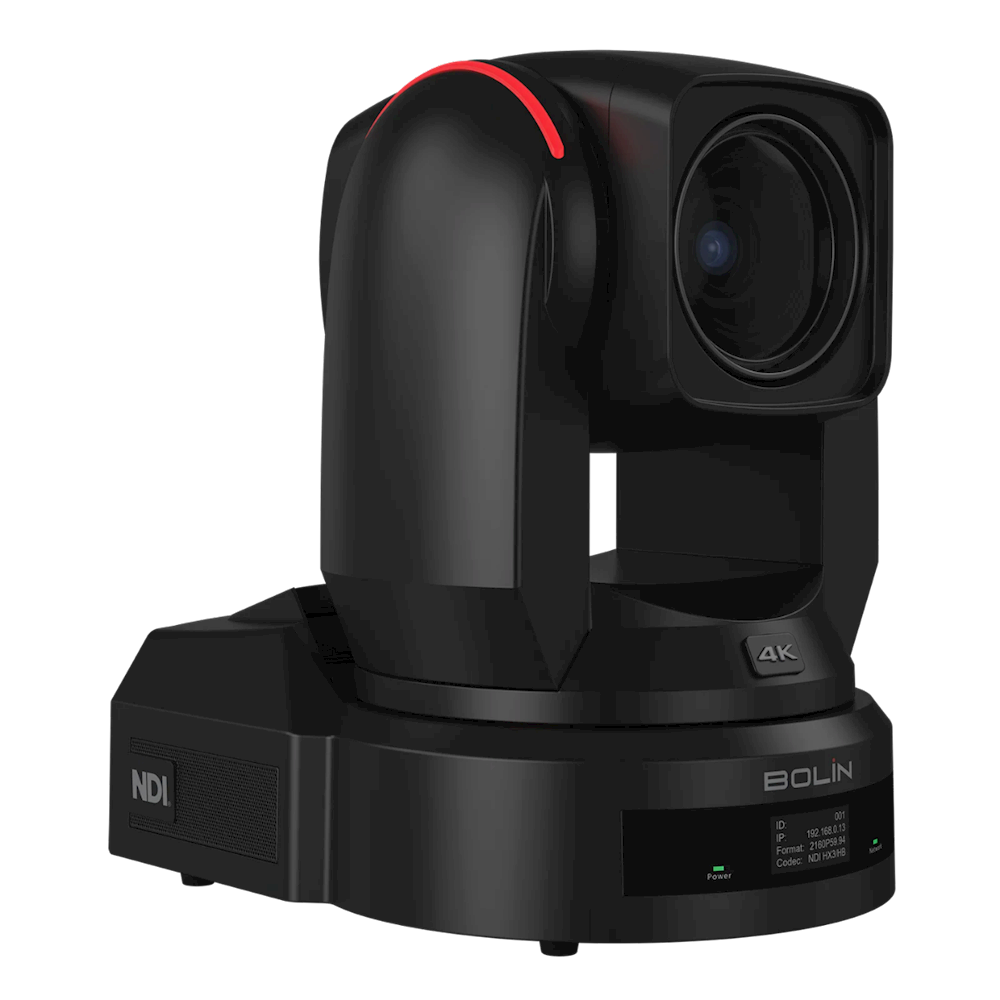

Bolin-R9 NDI Indoor PTZ Camera 4K-20X-BK

Expanding Bolin’s PTZ lineup, the R9-L420N is designed for productions that demand high image quality and precise system synchronization.

At its core is a 1-inch sensor paired with advanced image processing, delivering 4K60 video with up to 20X zoom and 1080p up to 120 fps for productions that require high frame rate capture. Hybrid autofocus combines phase-detection speed with contrast-based precision, helping the camera quickly acquire and maintain focus during live production.

The camera also supports adjustable cropped outputs, allowing alternate framing to be generated from the same camera image. This gives operators additional production flexibility without requiring a second camera position.

For multi-camera productions, R9-L420N supports LTC timecode and Genlock, helping ensure accurate synchronization with other cameras and production systems. Built-in ND filters allow operators to fine-tune exposure in changing lighting conditions.

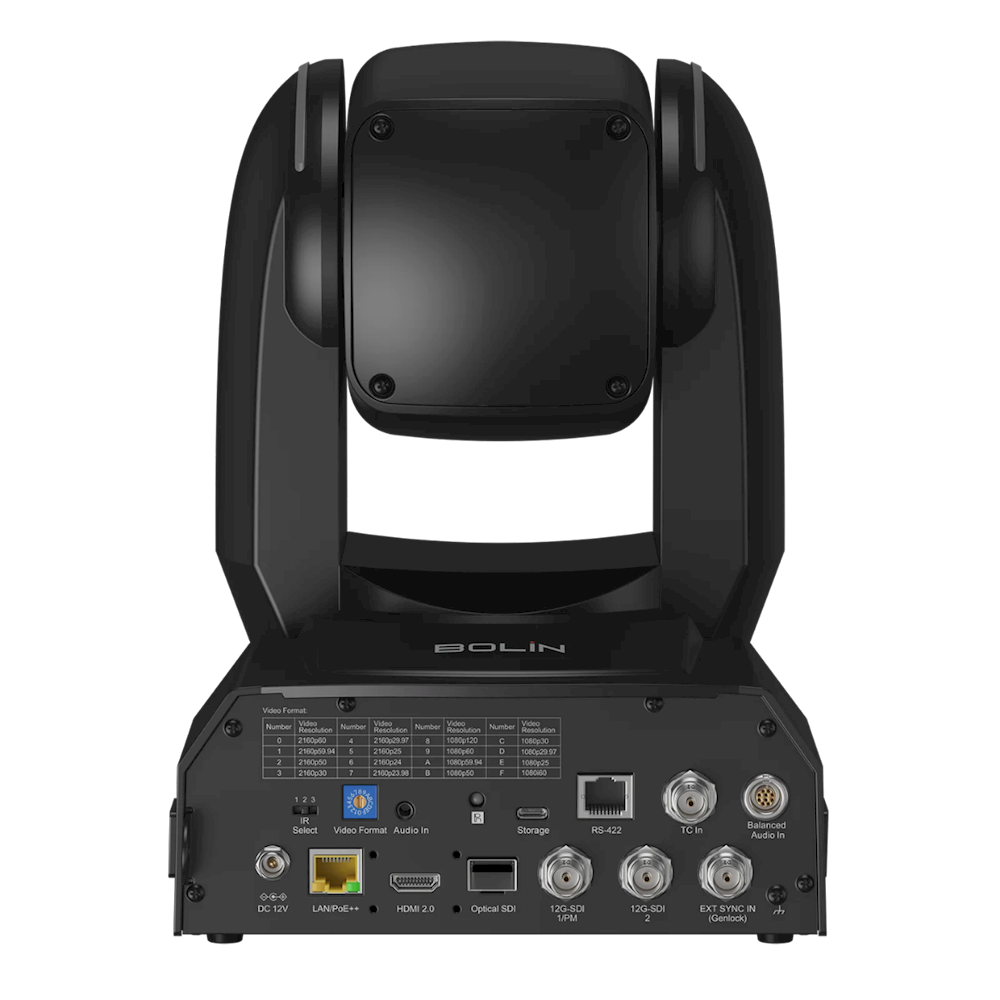

Connectivity includes dual 12G-SDI, HDMI 2.0, Optical SDI, and IP outputs, with support for NDI High Bandwidth, NDI HX3, SRT, RTMP, RTSP, ONVIF, and MPEG-TS, allowing the camera to integrate into both traditional broadcast infrastructures and modern IP-based production workflows.

R9-L420N Key Features:

• 4K60/1080p120, 1" Sony Sensor, 20x Zoom
• Hybrid autofocus combines PDAF and CDAF for fast and reliable focus.
• Supports adjustable cropping that allows alternate framing to be generated from the same camera image while the main output remains unchanged.
• Direct USB-C recording to external storage to capture footage locally.
• Integrated LED display provides a quick way to check status and settings.
